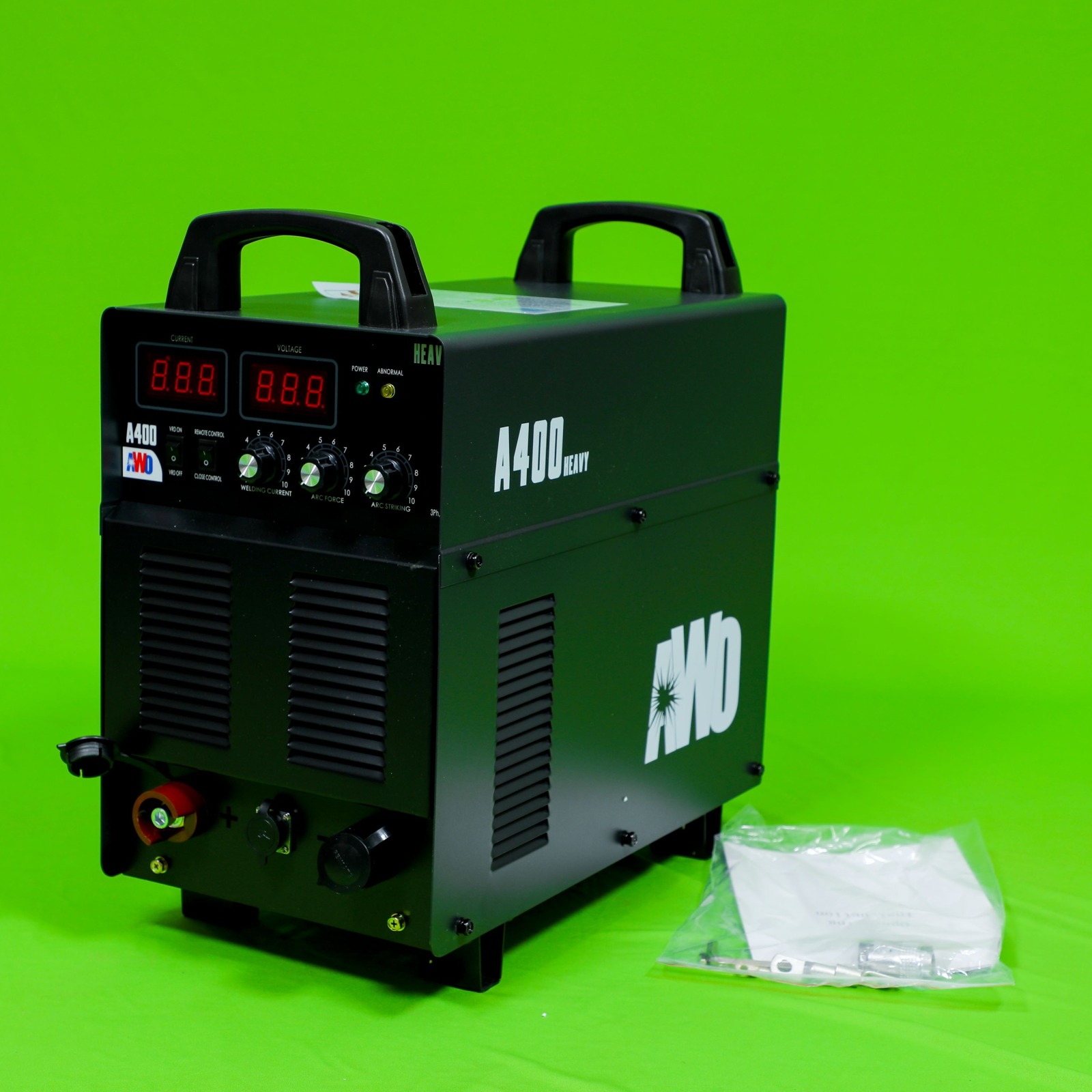

AWO A400 HEAVY MMA/ARC WELDING MACHINE

In stock•cod not available

Phone Number

08048073382

Please keep 0 before dialling the number.

Email Address powerweldsystem@yahoo.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Address 4V4R+99R , Nair Wadi , Andheri East

Mumbai, India, 400072

Description

Voltage(V) - 3-415 ±10% Frequency(Hz) - 50/60 Rated Input Capacitor(KVA) - 20 Rated Input Current(A) - 27 Rated Output Voltage(V) - 36 Power Factor - 0.91 Output no-load Voltage(V) - 76 Rated Duty Cycle(%) - 60 Output Current Range(A)- 40-400 Wire Diameter(mm) - ≤Ø5 Efficiency(%) - 85 Insulation Class - F Protection Degree - IP21S Cooling - Air Cooling Dimension(mm) - 570*290*485 Net Weight(kg) - 30 Gross Weight(kg) - 32.5
